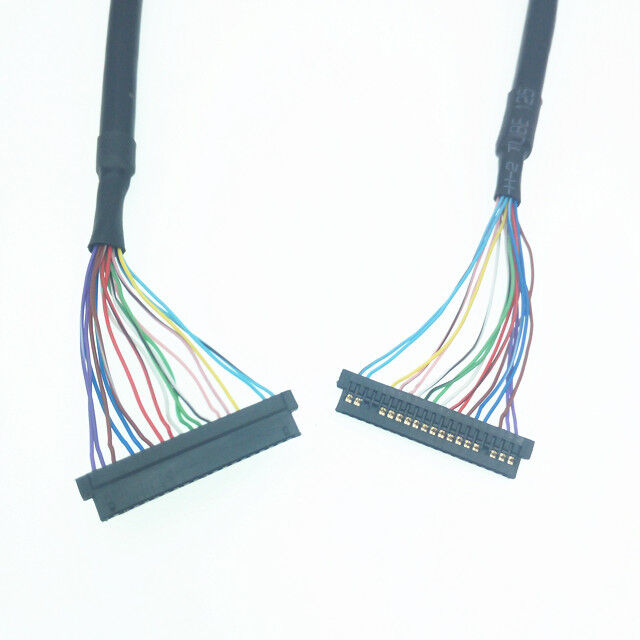

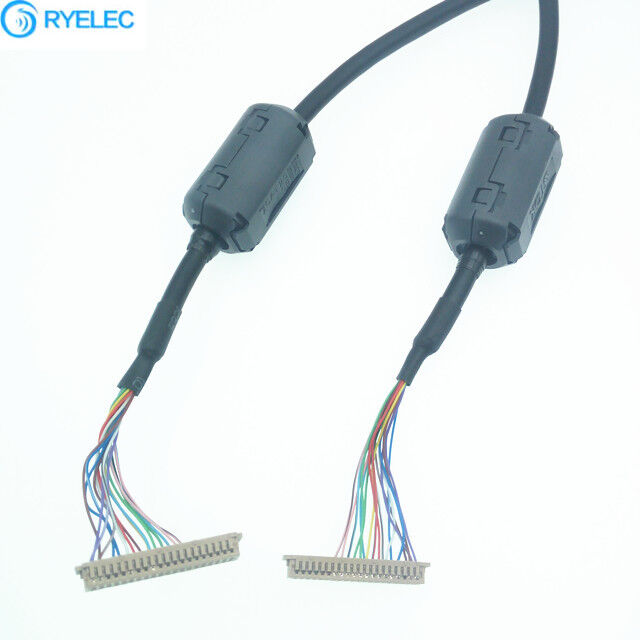

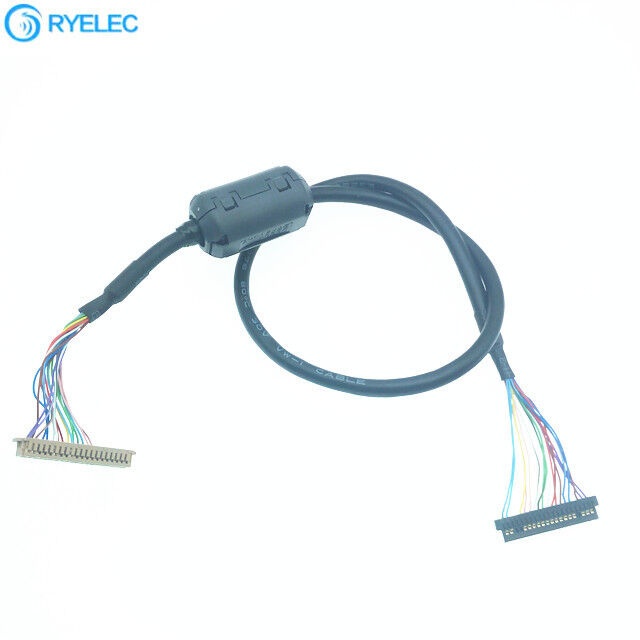

JAE FI-S20S to DF13-40DS with ZCAT2035-0930 Ferrite LVDS Cable Assembly
This LVDS cable assembly features JAE FI-S20S to DF13-40DS connectors with ZCAT2035-0930 ferrite core, designed for high-speed signal transmission in display and electronic applications.
Product Specifications
| Cable Type |
32AWG, 30AWG, 28AWG, 26AWG
LCD 20-core single/double shield cable
LCD 32-core single/double shield cable
LCD 20/32-core non-shield cable |
| Cable Color |
Black/Grey |
| Connectors |
JAE, HRS, JST, AMP, Dupont, I-pex, Molex, YH, ACES, FCI, DDK, UJU, JWT, Panasonic |
| Cable Length |
50mm - 15000mm |
| Processing Methods |
Crimping, pressing, and soldering |
| Pin Out Connection |
Customized per customer specifications |
| Connector Pitch Range |
0.3mm - 4.2mm |
| Characteristics |
Excellent signal transfer, clear picture quality, stable performance |
| Applications |
LCD/Display/Advertising machines/Phones/Laptops/Computers/PDA
Cameras/LCM/Notebooks/Tablet PCs/HDD |
Key Features
Factory direct manufacturing
Competitive pricing with quality assurance
Short lead times
ISO9001:2008 certified
OEM/ODM services available
ISO/RoHS/UL compliant
100% electrical performance testing
LVDS Cable Applications
- Displays and monitors
- PCs and computers
- Flat screen TVs
- Printers, scanners, fax machines, copiers
- Sound systems
- Liquid crystal displays
- Car DVD systems
- Digital cameras
- Airbag systems
- Inkjet printers
- Medical imaging equipment
LVDS cables are used for signal transmission and internal layout in display systems, flat television sets, printers, scanners, computers, digital cameras, video cameras, fax machines, copiers, and Agilent test equipment.
Company Overview
RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs.
Our manufacturing facilities can build various types of custom cable assemblies (LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antennas and RF connectors.
Our Advantages
Quality Control: UL, CE, ROHS certified, ISO9001:2008
Low MOQ: 5-50 pieces depending on items
Fast Delivery: 2-15 days, on-time delivery guaranteed
After-Sales Service: Technical support and return service
1 Year Warranty
OEM/ODM Services
Trade Assurance: 100% quality, shipment, and payment protection
Certifications
Packing & Delivery
Frequently Asked Questions
When can we get the reply?
Any inquiries will be replied within 24 hours.
Can I get some samples?
Yes, sample orders are available for quality check and market testing (freight collect payment).
What's the delivery time?
Samples: 1-3 days production time. Bulk orders: 3-7 days production time.
What's your payment term?
We usually accept T/T as the main payment term, with other payment methods negotiable.
What about quality problems?
We offer technical support or return service for any quality issues or questions.
How to contact us?
Send your inquiry details below and click "Send" now! Free samples and best answers are waiting for you.
